Product Overview

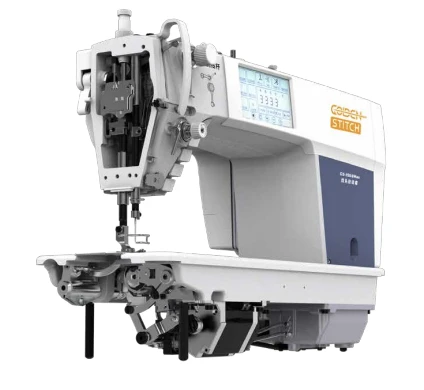

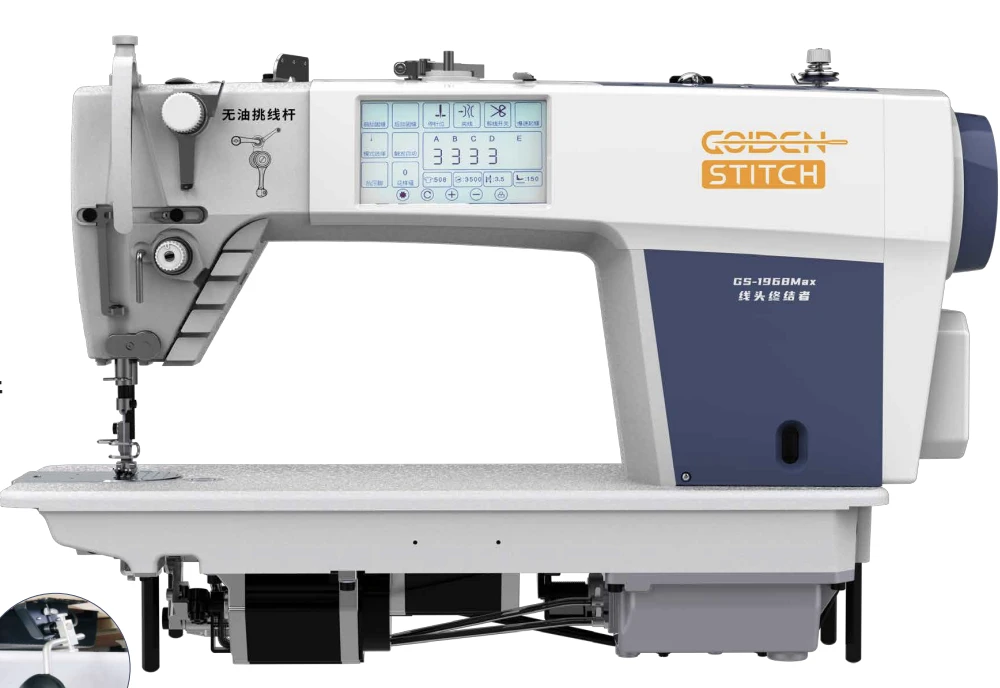

The GS-1968Max is a Bird Nest Prevention Sewing Machine that completely eliminates thread tangling (birdnest phenomenon) at the start of sewing and excessively long thread tails common pain points in automatic thread trimming flat sewing machines. This machine requires no additional external devices and does not occupy operating space. It delivers clean, neat stitches with precise thread trimming at both the start and end. Equipped with a 305mm large operating space and a 5-inch IOT LCD touch screen, it is an ideal choice for high-quality, intelligent sewing applications.
Core Features
- Birdnest-Free Stitching
No thread tangling at the beginning of sewing. Clean thread trimming at both front and back-beautiful, high-quality stitches.
- Ultra-Short Thread Tail
Starting thread tail approx. 3.5mm, ending thread tail approx. 2.5mm (standard configuration). No manual thread trimming needed-saves labor costs.
- No Presser Foot Limitation
Compatible with any presser foot on the market-strong compatibility, hassle-free.
- Large Operating Space
305mm large worktable space-easy to handle large-area sewing workpieces.
- 5" IOT LCD Touch Screen
Full-featured with simple, clear operation-supports IOT connectivity, intuitive and convenient parameter adjustment.
- Four-Button Convenient Operation
Four buttons for easy back-tacking, fill-in stitching (1 stitch, 1/2 stitch, 1/4 stitch), and reverse sewing.
- LED Light
Within easy reach with adjustable brightness-ensures adequate illumination of the work area.
- Visual Oil Window
Easy to check remaining oil level at any time-convenient for maintenance.
- Sealed Oil Tank + Oil-Free Head
Clean sewing prevents fabric contamination from oil stains. Oil-free head design with DLC-coated needle bar (Black Diamond) completely eliminates oil leakage risks.
- Electronic Knee Lifter
Lifts the presser foot effortlessly without changing workers' sewing habits.
- AI Intelligent Sewing System
Electronic Thread Tensioner：
Precise control of needle thread tension.
Cloth Thickness Sensor：
The system intelligently adjusts to the optimal sewing condition based on fabric thickness changes, delivering perfect stitches.

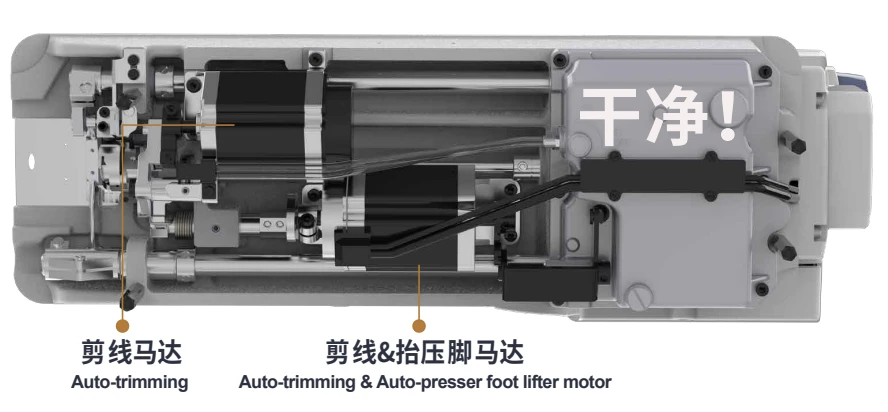

- Dual-Motor Thread Trimming System
Two stepper motors drive the thread trimming mechanism for precise thread tail control. Simple structure, stable and reliable trimming.
- Pattern Stitching
Eight different built-in stitch patterns with precise feeding stroke-meets diverse process requirements.
- Front & Back Dense Stitching
Locks small-pitch stitches at the start and end of sewing for better reinforcement.
Suitable Fabric
Lightweight & medium-weight fabrics. Suitable for cotton, linen, silk, satin, wool, polyester, nylon, blended fabrics, knits, stretch materials, and various functional performance fabrics. Widely meeting the sewing needs of garment manufacturing, home textiles, outdoor equipment, sportswear, automotive interiors, and more.
Technical Specifications
| Item | Specification |
|---|---|
| Model | GS-1968Max |
| Needle Size | DB×1 #7～#16 |
| Stitch Length | 0–6 mm |
| Speed | 5000 RPM |
| Hook | Standard Hook |
| Auto Presser Lifter | ●Standard |
| Auto Thread Trimming | ●Standard |
| Bottom Feed | ●Standard |
| Reverse Sewing | ●Standard |
| Operating Space | 305 mm |
| Packaging Dimensions | 715 × 305 × 630 mm |
| G.W./N.W. | 51.9 / 43.8 kg |
Why Choose GS-1968Max
The GS-1968Max Bird Nest Prevention Sewing Machine solves the birdnest problem at its source-without changing operating habits or adding external devices. It delivers perfect, birdnest-free stitches with ultra-short thread tails at both start and end. Combined with the AI intelligent sewing system that detects fabric thickness in real-time and automatically adjusts, it enables intelligent sewing and significantly reduces labor costs associated with manual thread trimming.
✅ Birdnest-free stitches
✅ Ultra-short thread tails, labor-saving
✅ AI intelligent sewing, auto-adapts to fabrics
✅ Dual-motor trimming, stable & reliable
✅ Oil-free, clean sewing
✅ 305mm large operating space
✅ 5" IOT touch screen
✅ Compatible with any presser foot
About Us
Zhejiang Nanyuan Sewing Equipment Co., Ltd. is a professional manufacturer of the Bird Nest Prevention Sewing Machine series. Established in 2012 and based in Zhejiang Province, we hold multiple patents and have been recognized as a Provincial Innovative SME. Our products are exported worldwide and trusted in garment and home textile industries. Choose Nanyuan for quality, innovation, and reliability.
FAQ
Q: What is the maximum operating space of the GS-1968Max?
A: The GS-1968Max features a 305mm large worktable, providing ample space for handling large-area sewing workpieces such as jackets, coats, and home textiles.
Q: How does the AI intelligent sewing system work?
A: The built-in cloth thickness sensor detects fabric thickness changes in real-time and automatically adjusts thread tension and feeding to achieve the optimal stitch quality without manual intervention.
Q: What is the advantage of the IOT touch screen?
A: The 5-inch IOT-enabled touch screen allows operators to easily adjust parameters, monitor machine status, and supports remote connectivity for future smart factory integration.
Q: Does it support pattern stitching?
A: Yes. It offers eight different built-in stitch patterns with precise feeding stroke, suitable for reinforcement stitching, decorative stitching, and various process requirements.
Q: How does the dual-motor trimming system improve production efficiency?
A: Two independent stepper motors drive the trimming mechanism, ensuring consistent thread tail length and reducing downtime caused by uneven trimming or thread jams.
Q: Is the machine easy to maintain?
A: Yes. The visual oil window allows easy oil level checks, and the sealed oil tank reduces noise and prevents oil contamination. The simple structure of the trimming system also makes maintenance convenient.
